11kV Distribution Fuse Cuout

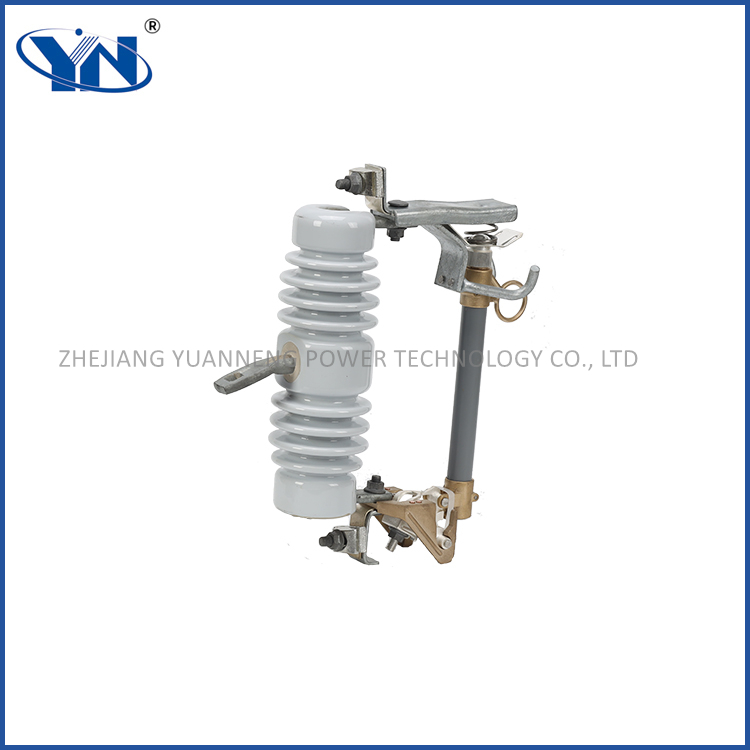

11kV distribution fuse cutout, creepage 220mm, 110kV BIL, with a 100A/200A fuseholder, parallel-groove connector and crossarm bracket.

We regret to inform you that our products are not available for retail sales, MOQ should be 100pcs. We appreciate your understanding and support.

Overview Specification Chart Application Other

Description

11kV distribution fuse cutout, creepage 220mm, 110kV BIL, with a 100A/200A fuseholder, parallel-groove connector and crossarm bracket.



Product Feature

  1. Housing insulator is a bird-proof, solid core, one-piece porcelain frame.
  2. Casting bronze/brass, all contact parts will be silver plated or tin-plated, all copper current paths can promote low resistance current transfer.
  3. The average thickness of hot-dip galvanizing is ≥ 85μm, ensuring rust and corrosion resistance.
  4. Moisture-resistant fiberglass reinforced fuse tube.
  5. Stainless steel flipper provides suitable fuse link tension and prevents breakage.
  6. Two connector styles – parallel groove and lug connection.



Mounting Arrangement

The cutout will be provided with a suitable arrangement for mounting, an angle of 15° to 20° from vertical. The cutout can be mounted on either steel cross-arm or poles. There is a hole in the mounting bracket to allow the cutout to be fixed by means of a bolt vertically through the cross-arm with its center line.



Service Conditions

Altitude: <1000m above sea level

Temperature: -40℃ ~+40℃

Relative humidity: the daily average value is not more than 95%, the monthly average value is not more than 90%

The installation site should be free from fire, explosion hazard, chemical corrosion and severe vibration.



Packing

Normal packing will be carton+ pallet. Pallets securing your primary packaging (and your product) in a stack to facilitate movement and storage, it provide additional protection. Special packaging arrangements are available upon user request.



Specification Chart

Product Name Fuse Cutout Fuse Cutout
Model YNC1-11/100A YNC1-11/200A
Insulator Material Porcelain Porcelain
Rated Voltage 11kV-15kV 11kV-15kV
Rated Frequency 50HZ/60HZ 50HZ/60HZ
Rated Current 100A 200A
Lightning Impulse Withstand Voltage 110kV 110kV
Power Frequency Withstand Voltage 40kV 40kV
Creepage Distance 220mm 220mm
Breaking Current 8kA 10kA
Fuselink Current Range 1A-100A 1A-100A
Mounting Type Galvanized steel mounting bracket Galvanized steel mounting bracket
Packing Individual packaging Individual packaging



Application

Fuse cutout can be installed on the high-voltage side of the transformer on the pole, where the transformer and the capacitor are connected to the line. The drop-out fuse effectively plays the role of overload protection and short-circuit protection in the circuit. At the same time, it can also be installed at the end of a long line or on a branch line. This approach can provide extended protection to areas that cannot be protected by relays. The structure of the drop-out fuse is not complicated but relatively simple, and it is also very economical in terms of price, and it does not require a lot of effort in future maintenance. Because the small size is convenient for installation, the fuse is used in the distribution network been widely used
