Description

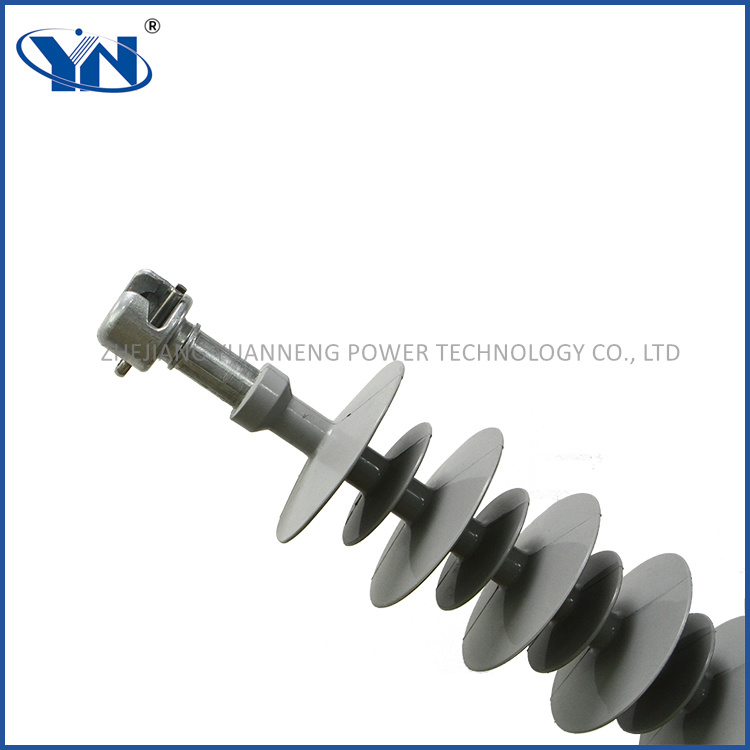

220kV high outdoor insulator can work for service voltage 230kV. It can be equipped with corona rings (optional), to evenly distribute the high voltage around the insulator to ensure there is no potential difference between various parts of the ring, to achieve the effect of voltage equalization.
Product Feature
Packing
Several different grades of packaging are available depending on the mode of transport and expected storage conditions. Special packaging arrangements are available upon user request.
Specification Chart
| Model | FXBW-220/120SB-2150 |
| Rated voltage | 220kV |
| Section Length | 2150±30mm |
| Dry arc distance | 1960mm |
| Power frequency withstand voltage 1 minute, wet | 395kV |
| Lightning impulse withstand voltage | 1000kV |
| Specified mechanical load (SML) | 120kN |
| Routine test load (RTL) | 60kN |
| Creepage distance | 6000mm |
| Shed Color | Gray |
Application
Silicone rubber suspension insulators are widely used in transmission lines, substations, power equipment and other fields. In transmission lines, composite rod-shaped suspension insulators can be used in power towers, cable suspension wires and other locations to support wires and insulate. In substations and power equipment, composite rod suspension insulators can be used on equipment such as isolation switches, circuit breakers, and cable terminals to ensure the safe operation of equipment.
Conditions of Use
Ambient temperature 40℃~+40℃
Altitude does not exceed 1500 meters
AC power frequency does not exceed 100hz
The wind speed does not exceed 35m/s
The earthquake intensity does not exceed magnitude 8
We only accept bulk order instead of retail sales, greatly appreciated for your kindly understanding.
